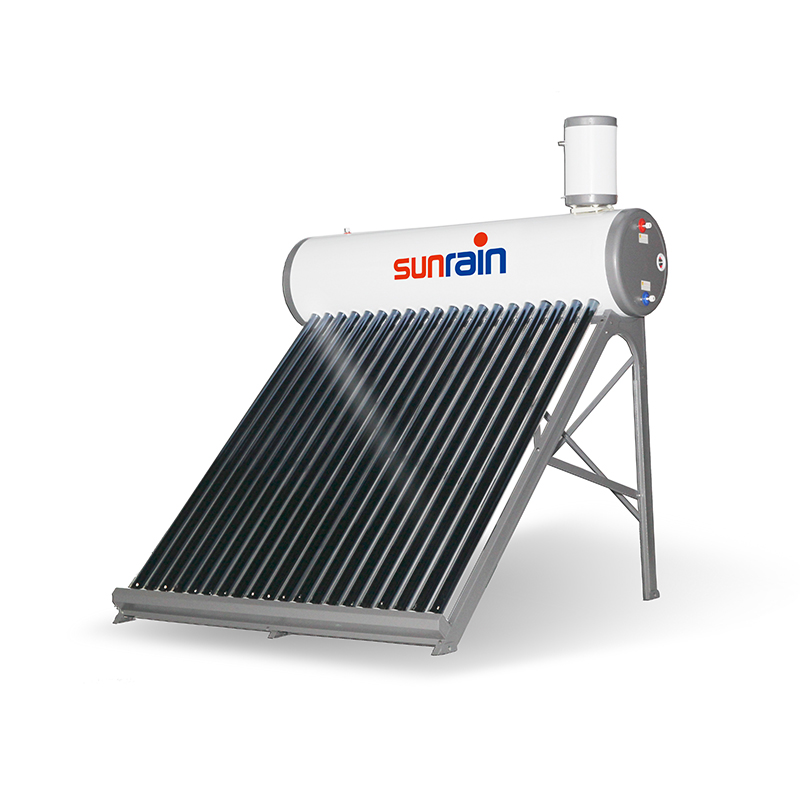

Type | Evacuated Tube |
Pressure | Unpressurized |
Circulation Type | Other |
Heating System | Thermosyphon (Passive) |
Connection Type | Direct-Plug |
Certification | CE, Solar Keymark, SABS |
Model Number | TZ58/1800-10,12,14,15,16,20,24,30 |
Recommend region | Asia, Africa, Latin America |
Inner tank: stainless steel SUS304-0.5mm
Vacuum tube: QB-AL-N/AL-47-1500/58-1800
Outer tank: painted steel-0.4mm/aluminum-zinc coated steel-0.45mm/stainless steel SUS304
Insulation: polyurethane
Frame: coated galvanized steel-1.5mm/stainless steel SUS430-1.5mm
Type | Evacuated Tube |
Pressure | Unpressurized |
Circulation Type | Other |
Heating System | Thermosyphon (Passive) |
Connection Type | Direct-Plug |
Certification | CE, Solar Keymark, SABS |
Model Number | TZ58/1800-10,12,14,15,16,20,24,30 |
Recommend region | Asia, Africa, Latin America |
Inner tank: stainless steel SUS304-0.5mm
Vacuum tube: QB-AL-N/AL-47-1500/58-1800
Outer tank: painted steel-0.4mm/aluminum-zinc coated steel-0.45mm/stainless steel SUS304
Insulation: polyurethane
Frame: coated galvanized steel-1.5mm/stainless steel SUS430-1.5mm
The vacuum tubes trap incident sun rays, and convert it to heat inside the inner tube. Water, now being heated its temperature rises, density changes, and hot water sections rise through the tube to the top of the tank, while cold water from the bottom of tank replaces it in the tube, to start the cycle again. This natural cycling of water driven by temperature difference keeps water hot when stored in an insulated tank.
The Solar Water heater tank is a non-pressurized tank, and has an opening to the ambient atmosphere. Solar water heater tank should always be filled with water to avoid damage caused by dry high temperature working conditions. The stainless steel our use belong to food grade, and SUS 304 & SUS 316 have better corrosion resistance.
The system passes over thermal performance test according to EN12976-2:2006-chapter 5.8, parts of the test conditions are listed below:
Model | Ac*[m²] | uc*[W/(m²K)] | Us[W/K] | Cs[MJ/K] | DL[-] |
TZ58/1800-12 | 1.145 | 2.758 | 1.766 | 0.605 | 0.301 |
TZ58/1800-14 | 1.347 | 2.758 | 2.060 | 0.706 | 0.301 |
TZ58/1800-16 | 1.527 | 2.758 | 2.355 | 0.807 | 0.301 |
TZ58/1800-18 | 1.589 | 2.758 | 3.298 | 0.898 | 0.352 |
TZ58/1800-20 | 1.916 | 2.758 | 2.943 | 1.009 | 0.301 |
TZ58/1800-24 | 2.298 | 2.758 | 3.532 | 1.210 | 0.301 |
TZ58/1800-30 | 2.874 | 2.758 | 4.415 | 1.513 | 0.301 |
Ac* | [m²] | effective collector loop area |
uc* | [W/(m²K)] | effective collector loop heat loss coefficient |
Us | [W/K] | heat loss rate of the store |
Cs | [MJ/K] | thermal heat capacity of the store |
DL | [-] | mixing constant, describing mixing effects during draw-off |
The vacuum tubes trap incident sun rays, and convert it to heat inside the inner tube. Water, now being heated its temperature rises, density changes, and hot water sections rise through the tube to the top of the tank, while cold water from the bottom of tank replaces it in the tube, to start the cycle again. This natural cycling of water driven by temperature difference keeps water hot when stored in an insulated tank.
The Solar Water heater tank is a non-pressurized tank, and has an opening to the ambient atmosphere. Solar water heater tank should always be filled with water to avoid damage caused by dry high temperature working conditions. The stainless steel our use belong to food grade, and SUS 304 & SUS 316 have better corrosion resistance.
The system passes over thermal performance test according to EN12976-2:2006-chapter 5.8, parts of the test conditions are listed below:
Model | Ac*[m²] | uc*[W/(m²K)] | Us[W/K] | Cs[MJ/K] | DL[-] |
TZ58/1800-12 | 1.145 | 2.758 | 1.766 | 0.605 | 0.301 |
TZ58/1800-14 | 1.347 | 2.758 | 2.060 | 0.706 | 0.301 |
TZ58/1800-16 | 1.527 | 2.758 | 2.355 | 0.807 | 0.301 |
TZ58/1800-18 | 1.589 | 2.758 | 3.298 | 0.898 | 0.352 |
TZ58/1800-20 | 1.916 | 2.758 | 2.943 | 1.009 | 0.301 |
TZ58/1800-24 | 2.298 | 2.758 | 3.532 | 1.210 | 0.301 |
TZ58/1800-30 | 2.874 | 2.758 | 4.415 | 1.513 | 0.301 |
Ac* | [m²] | effective collector loop area |
uc* | [W/(m²K)] | effective collector loop heat loss coefficient |
Us | [W/K] | heat loss rate of the store |
Cs | [MJ/K] | thermal heat capacity of the store |
DL | [-] | mixing constant, describing mixing effects during draw-off |
Before installation, please note:
1. Check the density, hardness and strength of roof structure to ensure safety of solar water heater.
2. The maximum snow load is: 1.2 times the weight of tank
3. Maximal wind resistance for the frame is 1000Pa, according to ENV1993-1-1.
The solar system must be installed in a non-shaded place. High buildings or trees may cause shade to solar water heater and reduce its performance.
For optimum performance, solar water heater should be installed facing towards the equator. For South Hemisphere solar water heater should be installed facing north, while for North Hemisphere should be facing south. Diverting for this north/south orientation is possible, given installation site conditions, and is best considered by your dealer’s appointed professional installers.
The connection of water pipes and tank uses a non-welding technique.
Always use a spanner, when tightening pipes on the tank
1. Always use a spanner to fix the pipes of the tank for any connections.
2. Prevent twisting force to the pipe to avoid damage to the seal.
3. Prevent any axial force to the pipe to avoid damage to the seal.
1. Solar water heater should face the sun, with 10° to 20° variation southwest. Be sure there is no shade on both sides of solar water heater.
2. Solar water heater should be fixed with roof firmly with expanding screw and/or steel wire to avoid potential danger against heavy wind.
3. Be sure that no leakage in pipeline, joints, valves and so on.
4. Pipeline should be insulated to avoid heat loss. For cold area usage, use electrical heating cable to protect against freezing.
5. If the area is prone to lightning strikes, with no existing protection then, user should add the lightning conductor fixture for protection against lightning.
Before installation, please note:
1. Check the density, hardness and strength of roof structure to ensure safety of solar water heater.
2. The maximum snow load is: 1.2 times the weight of tank
3. Maximal wind resistance for the frame is 1000Pa, according to ENV1993-1-1.
The solar system must be installed in a non-shaded place. High buildings or trees may cause shade to solar water heater and reduce its performance.
For optimum performance, solar water heater should be installed facing towards the equator. For South Hemisphere solar water heater should be installed facing north, while for North Hemisphere should be facing south. Diverting for this north/south orientation is possible, given installation site conditions, and is best considered by your dealer’s appointed professional installers.
The connection of water pipes and tank uses a non-welding technique.
Always use a spanner, when tightening pipes on the tank
1. Always use a spanner to fix the pipes of the tank for any connections.
2. Prevent twisting force to the pipe to avoid damage to the seal.
3. Prevent any axial force to the pipe to avoid damage to the seal.
1. Solar water heater should face the sun, with 10° to 20° variation southwest. Be sure there is no shade on both sides of solar water heater.
2. Solar water heater should be fixed with roof firmly with expanding screw and/or steel wire to avoid potential danger against heavy wind.
3. Be sure that no leakage in pipeline, joints, valves and so on.
4. Pipeline should be insulated to avoid heat loss. For cold area usage, use electrical heating cable to protect against freezing.
5. If the area is prone to lightning strikes, with no existing protection then, user should add the lightning conductor fixture for protection against lightning.
TZ58/1800-10 | TZ58/1800-12 | TZ58/1800-15 | TZ58/1800-18 | TZ58/1800-20 | TZ58/1800-24 | TZ58/1800-30 | |
GENERAL PARA. | |||||||
absorbing area (m2) | 1.389 | 1.647 | 2.085 | 2.478 | 2.755 | 3.310 | 4.142 |
operating pressure (bar) | 0 | ||||||
ambient temperature | 0-60 ℃ | ||||||
daily efficiency | >=55% | ||||||
empty weight (kg) | 40 | 46 | 52 | 65 | 71 | 79 | 98 |
loading qty (20/40/40HQ) | 48/100/116 | 48/100/116 | 40/80/88 | 36/72/80 | 32/68/72 | 28/56/64 | 22/44/52 |
STORAGE TANK | |||||||
capactiy (L) | 100 | 120 | 150 | 180 | 200 | 240 | 300 |
outer material (mm) | painted steel 0.4mm● stainless steel 0.4mm○ galvanized 0.4mm○ | ||||||
inner material (mm) | stainless steel 304 0.5mm● stainless steel 316L 0.5mm○ | ||||||
insulation (mm) | PUF 50mm | ||||||
electric heater | ○ | ||||||
nipple size | 1/2"● 3/4"○ | ||||||
feeder tank | ○ | ||||||
welding | ○ | ||||||
reflector | ○ | ||||||
controller | ○ | ||||||
tank packing size (mm) | 1120*560*560 | 1320*560*560 | 1570*560*560 | 1810*560*560 | 1980*560*560 | 2310*560*560 | 2830*560*560 |
VACUUM TUBE | |||||||
size | 58/1800mm | ||||||
tube qty | 10 | 12 | 15 | 18 | 20 | 24 | 30 |
tube packing size (mm) | 1880*330*250 | ||||||
FRAME | |||||||
material | galvanized● stainless steel○ aluminum○ | ||||||
inclined roof | galvanized ○ | ||||||
angle | 45°● 30°○ | ||||||
NOTE: | |||||||
● - standard | |||||||
○ - optional |
TZ58/1800-10 | TZ58/1800-12 | TZ58/1800-15 | TZ58/1800-18 | TZ58/1800-20 | TZ58/1800-24 | TZ58/1800-30 | |
GENERAL PARA. | |||||||
absorbing area (m2) | 1.389 | 1.647 | 2.085 | 2.478 | 2.755 | 3.310 | 4.142 |
operating pressure (bar) | 0 | ||||||
ambient temperature | 0-60 ℃ | ||||||
daily efficiency | >=55% | ||||||
empty weight (kg) | 40 | 46 | 52 | 65 | 71 | 79 | 98 |
loading qty (20/40/40HQ) | 48/100/116 | 48/100/116 | 40/80/88 | 36/72/80 | 32/68/72 | 28/56/64 | 22/44/52 |
STORAGE TANK | |||||||
capactiy (L) | 100 | 120 | 150 | 180 | 200 | 240 | 300 |
outer material (mm) | painted steel 0.4mm● stainless steel 0.4mm○ galvanized 0.4mm○ | ||||||
inner material (mm) | stainless steel 304 0.5mm● stainless steel 316L 0.5mm○ | ||||||
insulation (mm) | PUF 50mm | ||||||
electric heater | ○ | ||||||
nipple size | 1/2"● 3/4"○ | ||||||
feeder tank | ○ | ||||||
welding | ○ | ||||||
reflector | ○ | ||||||
controller | ○ | ||||||
tank packing size (mm) | 1120*560*560 | 1320*560*560 | 1570*560*560 | 1810*560*560 | 1980*560*560 | 2310*560*560 | 2830*560*560 |
VACUUM TUBE | |||||||
size | 58/1800mm | ||||||
tube qty | 10 | 12 | 15 | 18 | 20 | 24 | 30 |
tube packing size (mm) | 1880*330*250 | ||||||
FRAME | |||||||
material | galvanized● stainless steel○ aluminum○ | ||||||
inclined roof | galvanized ○ | ||||||
angle | 45°● 30°○ | ||||||
NOTE: | |||||||
● - standard | |||||||
○ - optional |
